Highlights
The Power of Prime for Quality Control

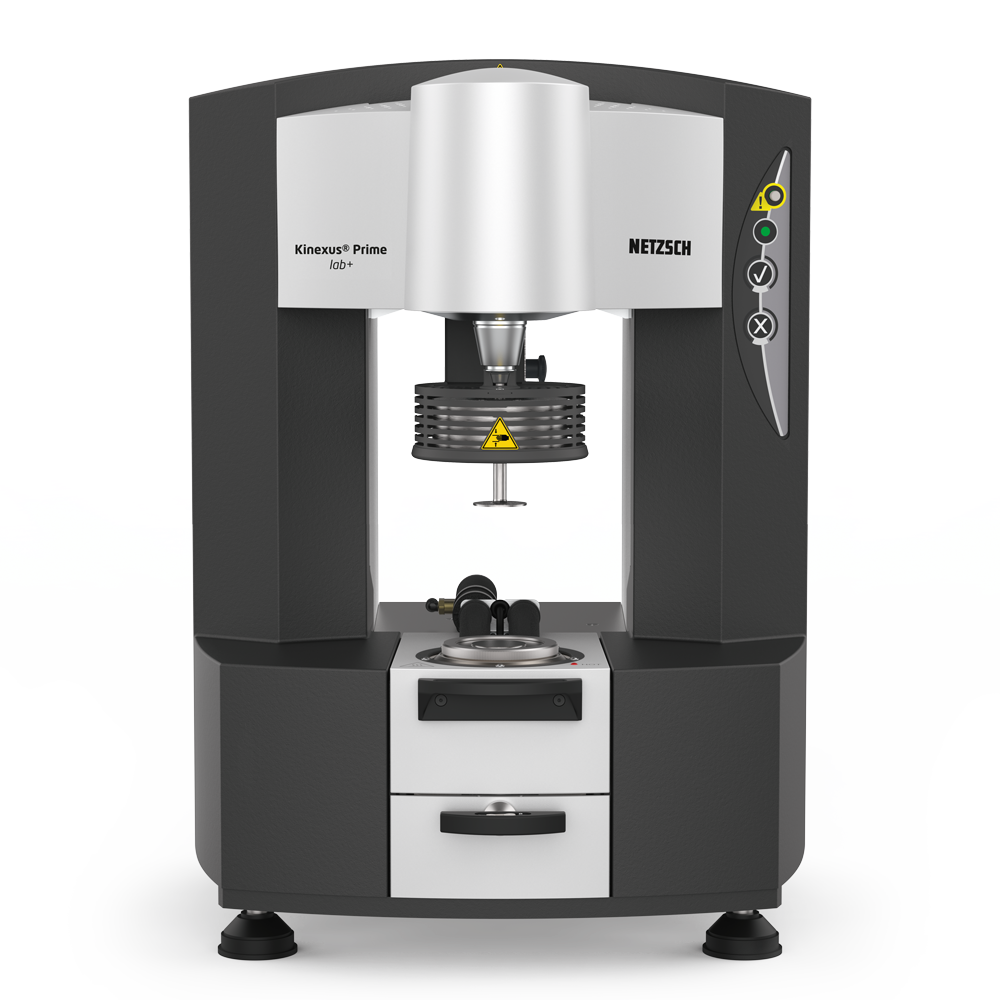

The Kinexus Prime lab+ is designed to withstand the rigors of a busy Quality Control laboratory, to provide robust and reliable rheological test capabilities. Ease of use is paramount in this environment, and the rSpace software enables Standard Operating Procedure (SOP) driven rheological testing for test protocols that can be used company wide.
Kinexus Prime integrates innovative instrument design with a revolutionary software interface, delivering a solution that will not only enhance productivity but also elevate understanding and success.
The Power of Prime offers sophisticated rheology test methods and solutions to gain unique insight into your rheological data. Unmatched ease-of-use and modularity, combined with the ultimate intuitive, flexible software.
Our Quality Promise:
NETZSCH's Unlimited Warranty
At NETZSCH, our commitment to quality goes beyond the instruments themselves. We understand that your investment in advanced technology is a long-term one, and that's why we offer something truly unique – our Unlimited Warranty.
Method
The rotational rheology is a measurement method for determining the flow and deformation properties of materials using rotational movements. A sample is placed between two plates or in a cylindrical measuring system (e.g. a cone-plate system) and subjected to a rotating shear force. By analyzing the resulting shear StressStress is defined as a level of force applied on a sample with a well-defined cross section. (Stress = force/area). Samples having a circular or rectangular cross section can be compressed or stretched. Elastic materials like rubber can be stretched up to 5 to 10 times their original length.stress and shear rate, important rheological parameters such as viscosity, elasticity and yield point can be determined. This method is particularly useful for the characterization of liquids, gels, pastes and soft solids in various scientific and industrial applications.
Specifications
Technical Data
| Kinexus Prime lab+ | |
|---|---|
| Torque range – viscometry | 10 nNm - 200 mNm |
| Torque resolution | 0.1 nNm |
| Frequency range | 6.28 μrads-1 to 628 rads-1 (1 μHz to 100 Hz) |
| Normal force range | 0.001 N - 50 N |
| Vertical lift speed | 0.1 μms-1 to 35 mms-1 |
EasySwap and High Temperature Cartridges
- Exclusive plug and play cartridge design
- compatible with the entire Kinexus product line of rotational rheometers
- EasySwap cartriges feature quick, easy and robust insertion
- Automatic cartridge recognition and configuration
- High-accuracy temperature sensor in close proximity to the sample
Proven Excellence in Service
At NETZSCH Analyzing & Testing, we offer a comprehensive range of services globally to ensure the optimal performance and longevity of your thermoanalytical equipment. With a track record of proven excellence, our services are designed to maximize the effectiveness of your devices, extend their lifespan, and minimize downtime.
Unlock the full potential of your equipment with our tailored solutions, backed by years of industry expertise and innovation.
Software
Experience the Ultimate in Test Flexibility with Sequence-Driven Rheometer Control
Toolkit Tests to Solve Your Material Puzzles:
- Build an overall rheology picture of your material
- Find an answer to material formulation, application or process problems
- Targeted optimization of a key material characteristic, or implementation of a critical diagnostic test
The rSpace software is based on sequences consisting of basic rheological actions (or test modules). These can be linked to other test actions to create intelligent tests.
