State-of-the-art technology for thermophysical properties
The NETZSCH LFA 457 MicroFlash® complies with the latest technology for modern laser flash systems. The table-top instrument allows measurements from -125°C to 1100°C using two different user-exchangeable furnaces.
The innovative infrared sensor technology employed in the system enables measurement of the temperature increase on the back surface of the sample, even at temperatures of -125°C.
The instrument can be used for small and large sample sizes of up to 25.4 mm diameter and, with the integrated sample changer, measurements can be run on several samples at the same time.
The vacuum-tight design enables tests under defined atmospheres.

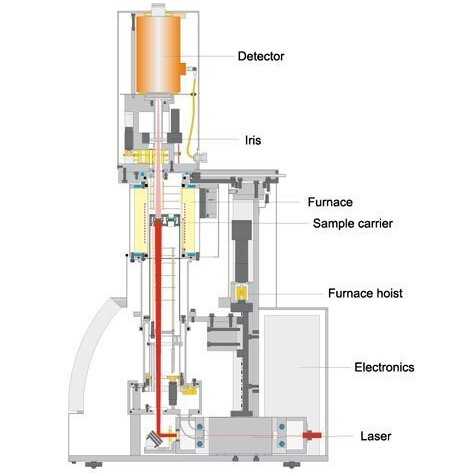

The vertical arrangement of the sample holder, furnace and detector simplifies sample placement and, at the same time, guarantees an optimum signal-to-noise ratio of the detector signal.
The LFA 457 MicroFlash® is the most up-to-date and versatile LFA system for research and development and for all applications involving characterization of standard and high-performance materials in automobile manufacturing, aeronautics, astronautics and energy technology.
Request a Quote
(2 exchangeable furnace types)
Heating- and cooling rates
Laser pulse energy
0.01 mm2/s to 1000 mm2/s (Thermal DiffusivityThermal diffusivity (a with the unit mm2/s) is a material-specific property for characterizing unsteady heat conduction. This value describes how quickly a material reacts to a change in temperature.thermal diffusivity)
0.1 W/mK to 2000 W/mK (Thermal ConductivityThermal conductivity (λ with the unit W/(m•K)) describes the transport of energy – in the form of heat – through a body of mass as the result of a temperature gradient (see fig. 1). According to the second law of thermodynamics, heat always flows in the direction of the lower temperature.thermal conductivity)
10 mm to 25.4 mm diameter (also 8x8 mm and 10x10 mm, square)
0.1 mm to 6 mm thickness

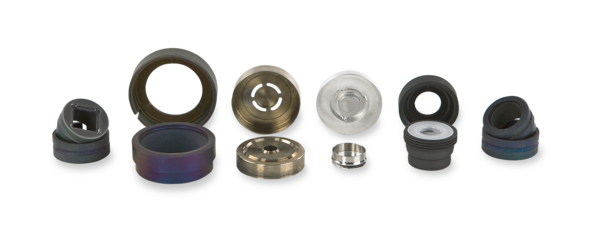

Liquid metal holder: sapphire
Sample holder for liquids: platinum
inert, oxidizing, reducing, static, dynamic
up to 10-2 mbar (1 Pa)
This instrument is LabV®️-primed
LabV®️ takes the data from your analytical instrument: It automatically imports all measurement data into a central and secure database solution, the LabV®️ software. This allows you to visualize the data in LabV®️ and to make them searchable. Your data will now be accessible from anywhere. Moreover you have the possibility to generate reports.
- Carbon Composites - Carbon/Carbon
- Liquid Sample Holder - Silicon Grease
- Measurement of the Thermal Conductivity of Thermoelectric Materials by Means of the Laserflash Technique
- Measurement of the Thermophysical Properties of Pure Molybdenum
- Paraffin PCM
- PbTe – A Thermoelectric Material Heat Capacity and Thermal Conductivity
- PTFE – A Fascinating Polymer Investigated by Advanced Thermal Analysis Techniques
- SiC Honeycomb Structure
