22.09.2022 by Aileen Sammler

60 Years of NETZSCH-Gerätebau: Thermoreflectance – The LFA Method for Thin Layers

The LFA method can typically be used on samples with a thickness of between 0.1 mm and 6 mm. However, with ever-advancing designs in electronic instruments and the associated demand for efficient thermal ma­nagement, it is more important than ever to achieve precise measurements of Difusividad TérmicaThermal diffusivity (a with the unit mm2/s) is a material-specific property for characterizing unsteady heat conduction. This value describes how quickly a material reacts to a change in temperature.thermal diffusivity, Conductividad TérmicaThermal conductivity (λ with the unit W/(m•K)) describes the transport of energy – in the form of heat – through a body of mass as the result of a temperature gradient (see fig. 1). According to the second law of thermodynamics, heat always flows in the direction of the lower temperature.thermal conductivity, and transition contact resistance into the nanometer range. In this application area, materials range in thickness from 10 nm to 2 µm. They may take the form of phase change storage, thermoelectric thin films, light-emitting diodes, dielectric interface layers or even transparent conductive films.

In 2008, the PicoTherm Corpora­tion of Japan introduced the two ThermoreflectanceThermoreflectance is a method for determining the thermal diffusivity and thermal conductivity of thin films with thicknesses in the nanometer range.thermoreflectance apparatuses NanoTR and PicoTR onto the market. The two apparatuses allow for measurements on materials in the thickness range from several 10s of nm to several 10s of µm. In particular in the development of 5G instruments, manufacturers increasingly use the Time Domain Thermoreflectance Method as a laser flash method for thin films.

In 2014, NETZSCH Japan K.K., a subsidiary of the NETZSCH Analyzing & Testing Business Unit, became the exclusive representation agency for the PicoTherm Corporation. In combination with our LFA instruments, NETZSCH was now in a position to offer a solution for everything from thin films in the nanometer range to bulk materials in the millimeter range. Since October 2020, the PicoTherm Corporation has been a 100% subsidiary of NETZSCH Japan, K.K. and thereby belongs entirely to the NETZSCH Group.


Did you know? NETZSCH Japan K.K. is celebrating its 10-year anniversary this year!

Our warmest congratulations to the entire Japanese team led by Yoshio Shinoda!

Our managing director at NETZSCH Japan, Mr. Shinoda, tells us more about PicoTR and NanoTR, sharing his experiences over the past years.

“In 2022, NETZSCH-Gerätebau GmbH is celebrating its 60th anniversary, but also the 10th anniversary of NETZSCH Japan! A double anniversary in one year, so to speak. 1999 marked the beginning of my work at NETZSCH Representative Office Tokyo. At that time, we employed only 3 people and had an annual order volume of about 100-200 million JPY. Today we have over 45 employees and are enjoying steadily growing sales figures.

In Japan, thermal analysis was already very well established 20 years ago. The door opener for NETZSCH to enter the Japanese market was the LFA 447 NanoFlash. This LFA had a great advantage over the competition in that measurements could be performed on thin samples quickly, thus meeting the needs of the market at the right time for electronic materials. However, as our company grew, we also encountered some application cases in the field of nanotechnology that we could not easily solve with our product portfolio at the time. Upon researching, we discovered PicoTherm Corporation, then a start-up of AIST (The National Institute of Advanced Industrial Science and Technology), which already had excellent devices for these applications called NanoTR/PicoTR. That was almost 10 years ago.

We immediately entered into initial negotiations for closer collaboration, which resulted in an exclusive representation of PicoTR products in 2014 and culminated in a merger in September 2020. Today, Time DomainA time domain analysis is based on changes in physical signals related to time. A time-domain graph shows how a signal changes over time. In the case of thermoreflectance or the laser flash method, the detector signal (voltage change) is recorded – at a minimum – over the time range between the energy input and the signal maximum (e.g., RF mode) or as a function of the expected heat diffusion time (e.g., FF mode).Time Domain ThermoreflectanceThermoreflectance is a method for determining the thermal diffusivity and thermal conductivity of thin films with thicknesses in the nanometer range.Thermoreflectance (TDTR) products make a significant contribution to our sales volume.

The major advantage of NanoTR/PicoTR is the reliability of the technology, which was originally developed by NMIJ/AIST. It is the only commercial method for measuring ultrathin films whose excellence can be demonstrated by certified reference material and in accordance with the Japanese industry standard.

NanoTR/PicoTR can be the door opener to nanotechnology for NETZSCH!"

Yoshio Shinoda

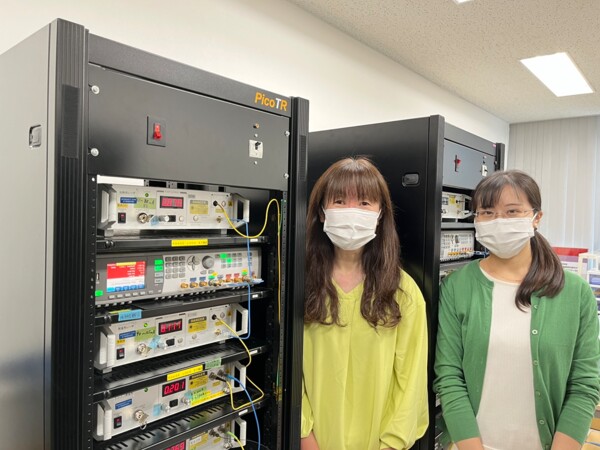

Photo: PicoTherm products team with PicoTR; Left: Ms. Kazuko Ishikawa (Nanotechnology business field manager); right: Ms. Naoko Ito (R&D engineer)

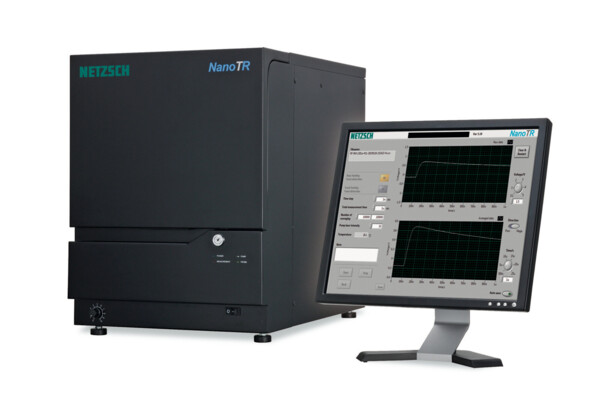

Learn more about Time Domain Thermoreflectance Analyzers:
