Polymers shrink. Most of the shrinkage happens during the cooling step of polymer processing. A way to reduce shrinkage is the addition of fillers. The advantages were discussed in a previous article.
The addition of fillers leads to an increase in mechanical performance. While a critical length of the fillers is needed to have an effect on the strength of components, the stiffness is already increased with fillers with small aspect ratios. In a study performed by the Institute of Polymer Technology at the University of Erlangen-Nuremberg , thermally conductive copper fillers were mixed with PA12 powder in varying volume contents to evaluate the change in properties and performance.
Analyzing changes in stiffness with Dynamic Mechanical Analysis
To understand how the stiffness or modulus change as a function of the filler geometry and filler content, Dynamic Mechanical Analysis (DMA) can be used. At NETZSCH Analyzing & Testing, unfilled samples as well as samples filled with copper spheres (5 and 10 vol%) and copper flakes (5 vol%) were analyzed using the NETZSCH DMA 242 E Artemis.
Sample preparation and measurement conditions
Samples of 50mmx10mmx4.5 mm were cut from dog bone specimens. Special care needs to be taken to ensure that the sample thickness is uniform as this measurement method is very sensitive to any deviations. In the SLS process, for example, lateral growth of the parts can occur when the melt inside the powder bed is so hot that solid particles start SinteringSintering is a production process for forming a mechanically strong body out of a ceramic or metallic powder. sintering onto the surface. This was not observed in these samples and thus, no additional surface treatments were needed.
For the measurement, the samples were then loaded in the 40-mm wide flexural fixture. Following an initial cooling and equilibration step, the samples were heated from -50°C to 180°C at 2 K/min, which is just below the Melting Temperatures and EnthalpiesThe enthalpy of fusion of a substance, also known as latent heat, is a measure of the energy input, typically heat, which is necessary to convert a substance from solid to liquid state. The melting point of a substance is the temperature at which it changes state from solid (crystalline) to liquid (isotropic melt).melting temperature of the material and covers all possible service conditions. All measurement conditions are summarized in the following table:
Table 1: Measurement conditions
|Sample holder||3 point bending, 40 mm span length|
|Proportional force factor||1.2|
|Dynamic load||max. 10 N|
|Temperature range||-50…180°C at a heating rate of 2 K/min|
Influence of copper fillers on the storage modulus
The results of neat PA12 and their effect on warpage of SLS parts can be found here.

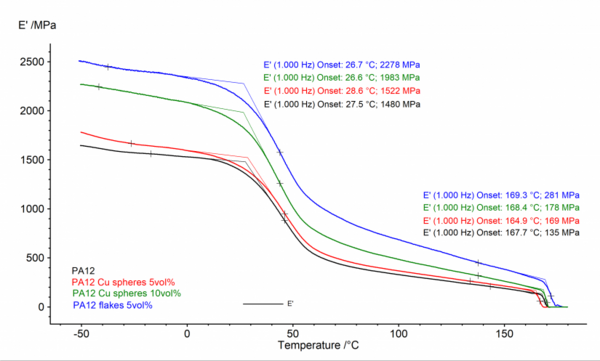

The graph in Figure 1 shows the storage modulus curve E’ for neat PA12 as well as the samples with 5 and 10 vol% copper spheres and 5 vol% copper flakes. It can be seen that the general behavior of all samples is very similar. Furthermore, the onset of the modulus drop at the Glass Transition TemperatureThe glass transition is one of the most important properties of amorphous and semi-crystalline materials, e.g., inorganic glasses, amorphous metals, polymers, pharmaceuticals and food ingredients, etc., and describes the temperature region where the mechanical properties of the materials change from hard and brittle to more soft, deformable or rubbery.glass transition and at melting happens in tight temperature ranges of 2°C and 4°C, respectively.
Looking at the modulus values of the different samples shows – as expected – the lowest values of the neat PA12 (e.g., 1480 MPa at 27.5°C and 135 MPa at 167.7°C). The modulus of the samples filled with 5 vol% Cu spheres shows slightly higher values. A significant increase is observed with 10 vol% Cu spheres, which shows that even fillers with aspect ratio = 1 can increase the stiffness of the material when a high enough filler content is used. However, it can be seen that the highest modulus values are obtained with 5 vol% copper flakes (e.g., 2278 MPa at 26.7°C). This modulus at the onset of the glass transition is 54% higher with the flakes compared to the neat PA12. This can be explained by the predominant orientation of the flakes in the xy-plane, which is aligned with the axis of testing in the flexural fixture. The predominant orientation of flakes was shown and analyzed in this article.
Influence of copper fillers on loss modulus and tan δ

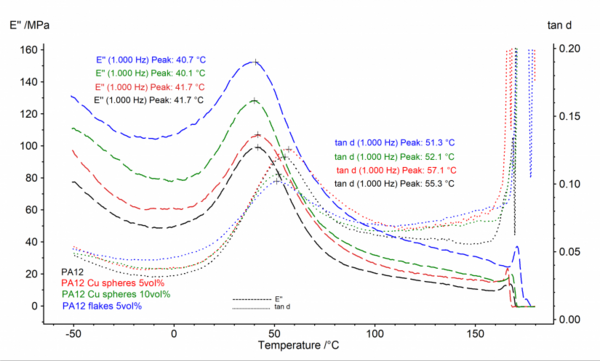

Figure 2 shows the results of the Viscous modulusThe complex modulus (viscous component), loss modulus, or G’’, is the “imaginary” part of the samples the overall complex modulus. This viscous component indicates the liquid like, or out of phase, response of the sample being measurement. loss modulus E“ and tan δ of the same samples as presented in Figure 1.
These results also show that the characteristic maxima are independent of the sample variations investigated.
How to successfully modify material performance
The measurements confirm that the stiffness of the SLS parts is increased by the addition of fillers regardless of their aspect ratio. It is further shown that for fillers with higher aspect ratios such as the Cu flakes, even small filler contents can have significant influence such as a 54% increase in modulus. This can be used to modify the material performance without changing to a completely new polymer, which might be difficult to process in the SLS process.
About the Institute of Polymer Technology (LKT)
The Institute of Polymer Technology is an academic research institute at the Friedrich-Alexander University of Erlangen-Nuremberg. It is one of the leaders in Additive Manufacturing research; particularly SLS. Other main research areas include Lightweight Design and FRP, Materials and Processing, Joining Technology and Tribology. In addition to these research focuses, the institute is also working on cross-disciplinary topics such as Filler Material Compounding, Simulation of Processing and Applications, Radiation Cross-linked Thermoplastics, Gentle Processing and many more.
 Lanzl, L., Wudy, K., Greiner, S., Drummer D., Selective Laser SinteringSintering is a production process for forming a mechanically strong body out of a ceramic or metallic powder. Sintering of Copper Filled Polyamide 12: Characterization of Powder Properties and Process Behavior, Polymer Composites, pp. 1801-1809, 2019
