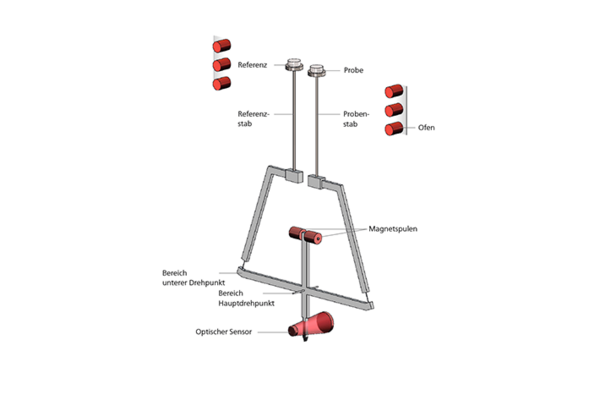

Top-Loading and Unique Differential Balance Arrangement
The natural gas flow in the top-loading system guarantees automatic protection of the balance against condensation and contamination. The tailor-made differential balance system cancels out buoyancy and convection influences over a broad temperature range. This provides easy operation without the need for timeconsuming baseline runs.
Various Atmospheres Available
Measurements can be performed in inert and oxidizing atmospheres but also under vacuum. The atmosphere can be dynamic or static. The built-in mass flow controllers (MFCs) are software-controlled and allow gas changes at any time during the test.
Ideal for Evolved Gas Analysis
The top-loading design of the STA allows for convenient coupling to gas analysis systems such as FT-IR (Fourier Transform Infrared) spectrometer, MS (mass spectrometer), or GC-MS (gas chromatograph – mass spectrometer). During thermal treatment, the gases evolved can be simultaneously analyzed.
Request a Quote
Maximum sample temperature
(heating rate 0.001 to 100 K/min)
Furnace II: RT to 1600°C
(heating rate 0.001 to 50 K/min)
± 250 mg
1 g max.
up to 10-4 mbar (10-2 Pa)
inert, oxidizing, vacuum
