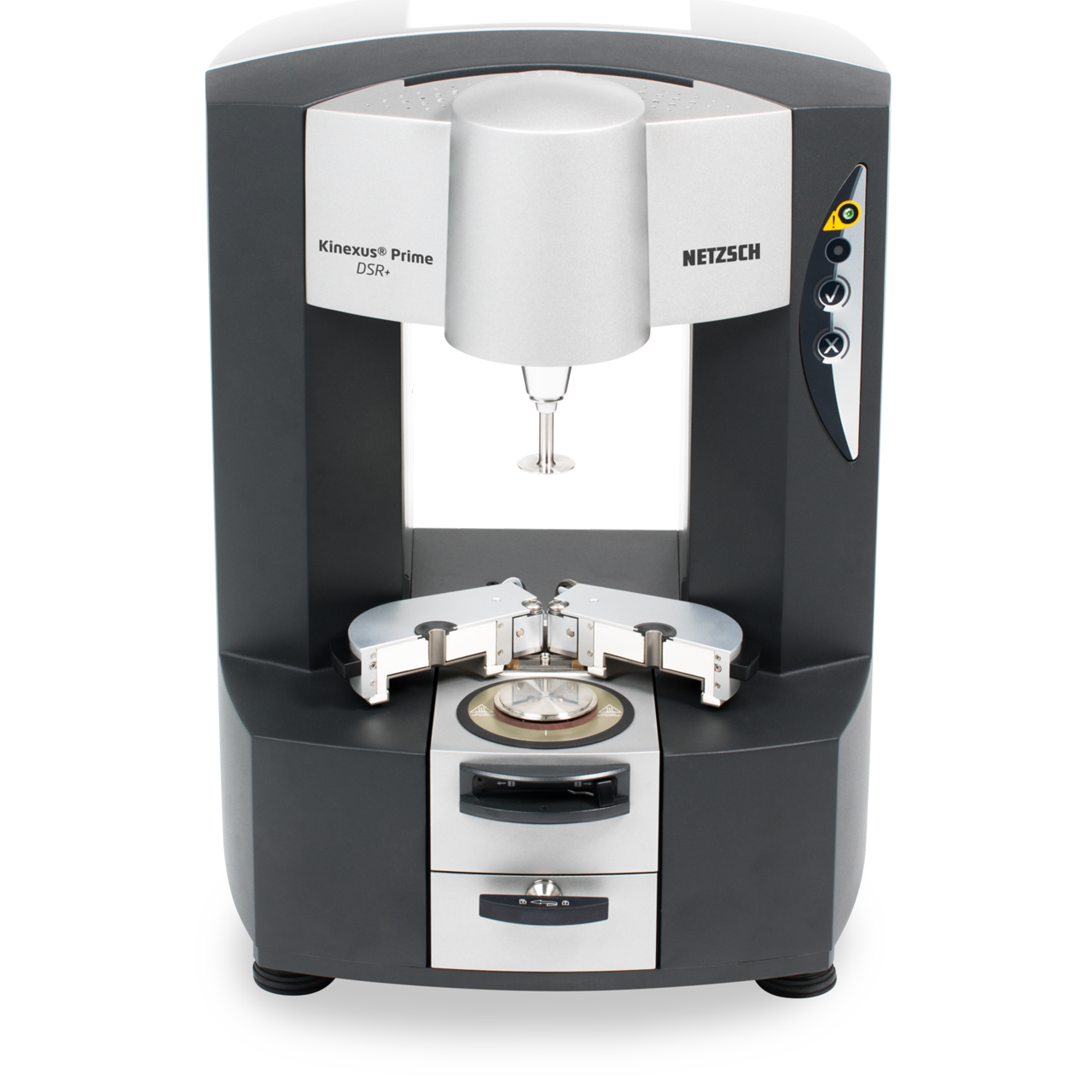

Kinexus Prime DSR+

The world's most sensitive DSR for all construction and petro chemicals testing

The Kinexus Prime DSR+ is a dynamic shear rheometer for research and development requirements in the Asphalt industry, with true ‘plug and play’ functionality for all measuring systems and environmental control units. The Kinexus DSR+ enables pioneering Standard Operating Procedure (SOP) based testing while offering access to a full range of standard rheological tests with total flexibility of test design and set-up.

Data Sheet Brochure Accessories Brochure Mailing Service Registration

Get a personalized offer now.

Request a Quote

The Kinexus Prime DSR+

incorporates technological innovations that enable optimal flexibility in rheological test capabilities and protocols - for meeting quality control requirements in the Asphalt industry.

Grade testing to industry standards such as AASHTO and EN specifications with Time-Temperature Superposition for master curve generation.
Wide variety of measurement geometries optimized for rheological characterization of liquid binders to solid asphalt cores.
All modes of rheological operations – StressStress is defined as a level of force applied on a sample with a well-defined cross section. (Stress = force/area). Samples having a circular or rectangular cross section can be compressed or stretched. Elastic materials like rubber can be stretched up to 5 to 10 times their original length.stress control, shear rate control and direct StrainStrain describes a deformation of a material, which is loaded mechanically by an external force or stress. Rubber compounds show creep properties, if a static load is applied.strain controlled oscillation at demand StrainStrain describes a deformation of a material, which is loaded mechanically by an external force or stress. Rubber compounds show creep properties, if a static load is applied.strain amplitude for accurate control of sample StrainStrain describes a deformation of a material, which is loaded mechanically by an external force or stress. Rubber compounds show creep properties, if a static load is applied.strain history.
Access to all rheological tests supplied with the standard Kinexus package in addition to the standard Asphalt software.
Unique rSpace software interface that offers total flexibility of test set-up - from sequence-driven Standard Operating Procedure (SOP)-type functionality to fully customizable test design.
Intelligent geometry recognition with full auto-configuration and user feedback on system status to guarantee robust data for all measurements.
Solids fixtures for measuring fatigue or accumulated StrainStrain describes a deformation of a material, which is loaded mechanically by an external force or stress. Rubber compounds show creep properties, if a static load is applied.strain testing of asphalt cores and Penetrometer adapter for automated penetration testing of asphalt binders.
Complete sample history from the point of loading onto the rheometer available in data file as standard – because ensuring reliable rheology data for complex materials like asphalt actually starts before a measurement takes place.
Exceptional vertical travel and gap-setting capabilities with ultra-responsive and highly sensitive normal force system for class-leading performance.
Unique ‘plug and play’ cartridge system for all temperature and environmental controllers – all mechanical, power, communication and fluid connections made in one simple action.
Multifunctional accessory design – plate cartridges with interchangeable lower plates and cylinder cartridges with interchangeable cups - for a cost-effective solution and widest application coverage.

Kinexus DSR+ is a rotational rheometer for use in the Asphalt industry. The system applies controlled shear deformation to a sample under test, to enable measurement of flow properties (such as shear viscosity from flow tests) and dynamic material properties (such as viscoelastic modulus and phase angle from oscillation tests).

A dynamic shear rheometer comprises several key components to enable robust, reliable and accessible rheological measurements for a particular sample or application:

Rheometer base unit. Control of key system functions, including torque (for StressStress is defined as a level of force applied on a sample with a well-defined cross section. (Stress = force/area). Samples having a circular or rectangular cross section can be compressed or stretched. Elastic materials like rubber can be stretched up to 5 to 10 times their original length.stress control), rotational position change (for StrainStrain describes a deformation of a material, which is loaded mechanically by an external force or stress. Rubber compounds show creep properties, if a static load is applied.strain or rate control), normal force and vertical position change (for sample loading and gap setting).
Measuring system or geometry. The measuring system is the link between the rheometer and the sample, and defines the applied shear field. The type of measuring system must be appropriate to the sample type and the test under consideration.
Temperature or environmental control unit. Accurate control is essential since rheological properties are a strong function of temperature and environmental conditions particularly for asphalt.
Instrument software. Rheological testing can be, by its nature, relatively complex to set up. NETZSCH’s cornerstone Standard Operating Procedure (SOP) approach to material testing has been enhanced in rSpace software to revolutionize and simplify user interaction, and to bring ‘expert system’ guidance and SOP-driven testing for standard asphalt testing and general rheological measurements for the first time.
