Multiple Module Calorimeter

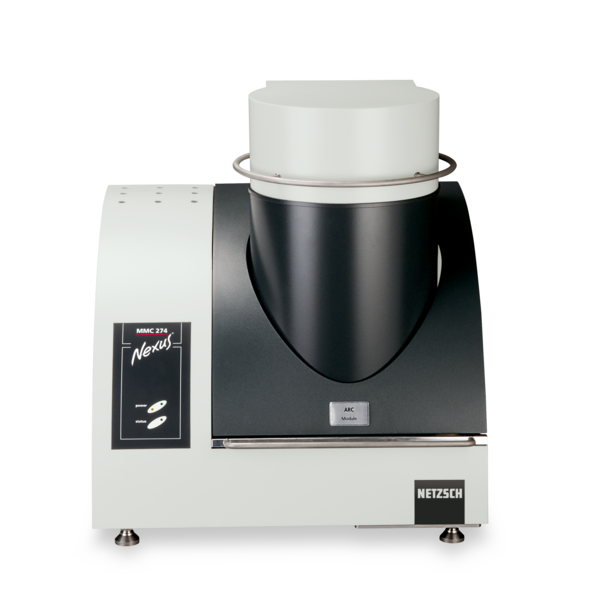

Multiple Module Calorimeter MMC 274 Nexus®

Various Modules in One Calorimeter

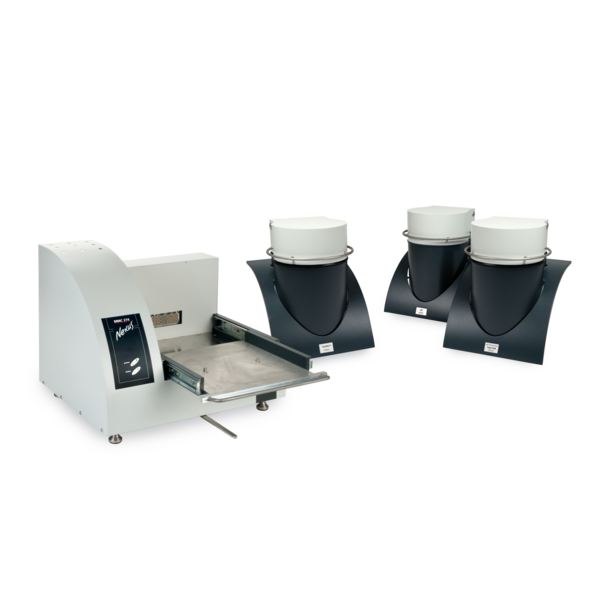

The Multiple Module Calorimeter (MMC)A multiple mode calorimeter device consisting of a base unit and exchangeable modules. One module is prepared for accelerating rate calorimetry (ARC®), the ARC®-Module. A second one is used for scanning tests (Scanning Module) and a third one is related to battery testing for coin cells (Coin Cell Module).MMC 274 Nexus® consists of two parts: the base unit with electronics and the exchangeable calorimeter module. This guarantees maximum flexibility.

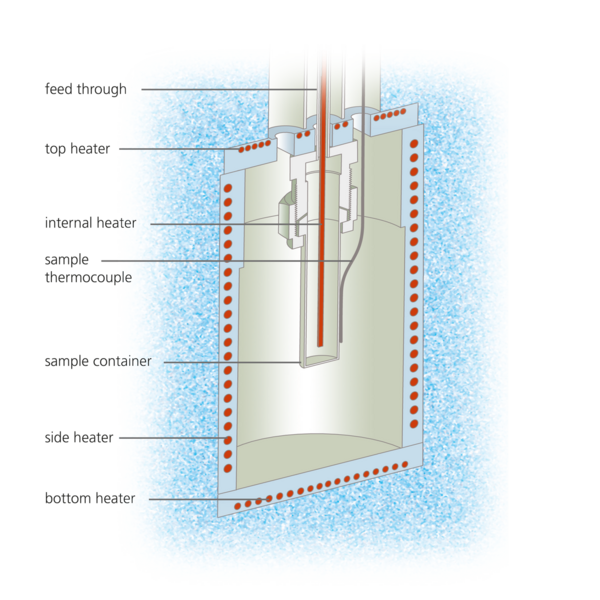

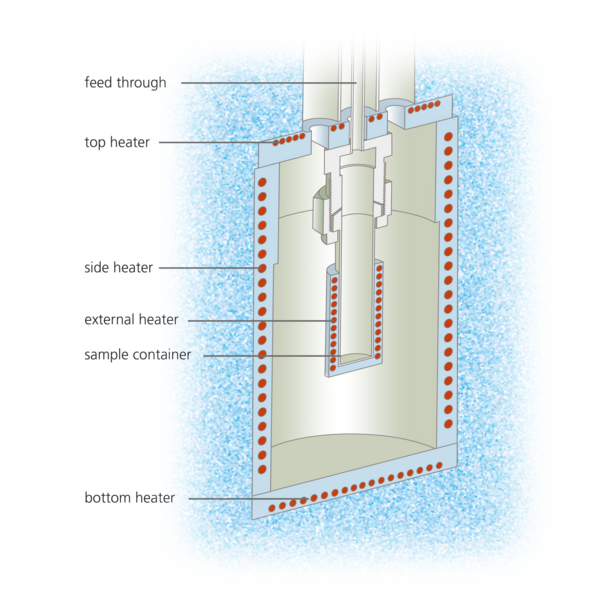

Exchangeable calorimeter modules are available for different applications. The Accelerating Rate Calorimeter (Accelerating Rate Calorimetry (ARC)The method describing isothermal and adiabatic test procedures used to detect thermally exothermic decomposition reactions.ARC®) module can be used for standard process safety work. The External heater module can be employed for more sophisticated measurements.

Key Features and Advantages of MMC 274 Nexus®

Request a Quote

Get a personalized offer now.

Request a Quote

Technical Data

Temperature range
RT to 500°C
Temperature readability
0.01 K
Heating rate
0 to 5 K/min

Pressure range:
0 to 150 bar

Pressure readability:
0.01 bar

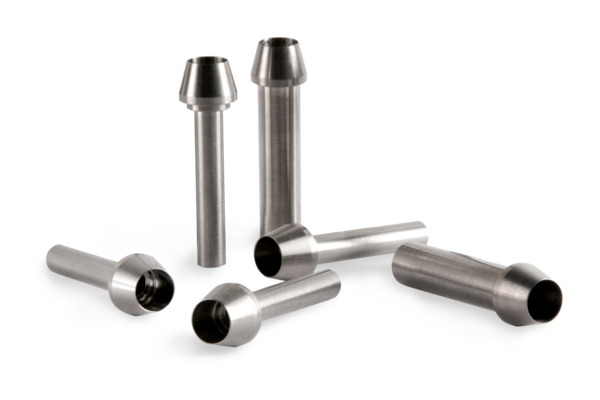

Sample container volume:
0.1 ml to 8.5 ml

Tracking rate - ARC® and scanning module:
up to 50 K/min

Product Information
