Affordable Gas Analysis
The unrivaled instrument alliance serves as an innovative coupling technique, even for a narrow budget. It has what it takes to become an integral part of any laboratory and indispensible for its future needs.
No Liquid Nitrogen required
The DLaTGS (DLaTGS = deuterated L-alanine doped triglycine sulphate) detector used does not require any liquid nitrogen cooling. This system is therefore particularly well-suited for test runs with an autosampler (ASC) or for measurements of longer duration.
![](https://analyzing-testing.netzsch.com/_Resources/Persistent/9/7/c/d/97cd50c52cc128ebbb893731d1e25c057e47179a/PERSEUS_TG_309_Libra_01_%20klein-763x598-600x470.webp)
![](https://analyzing-testing.netzsch.com/_Resources/Persistent/0/9/0/9/0909ee74fda8a9a84b9380f9238b7bc82c62ebf5/PERSEUS_STA_509_Jupiter_03-600x550.webp)
No Separate Transfer Line
The built-in heated gas cell is directly connected to the gas outlet of the furnace via a heated tube. The low volume of this short gas path guarantees fast response and is quite advantageous in cases where condensable evolved gases are present.
Space-Saving Design

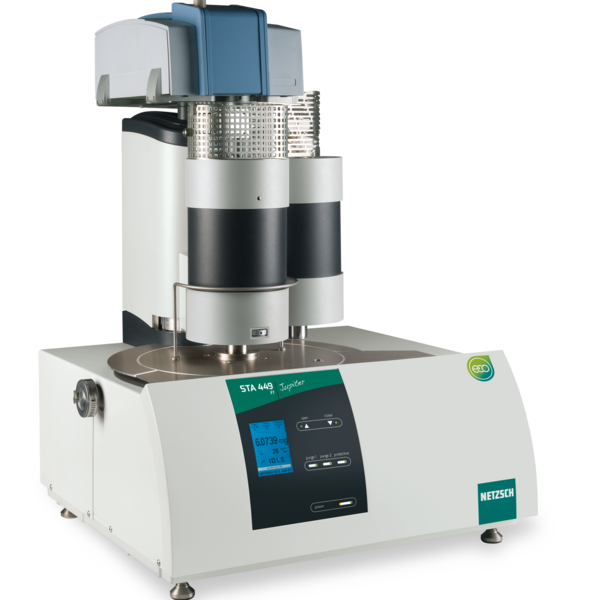

No separate FT-IR spectrometer is necessary, the footprint of the PERSEUS® coupling is identical to that of an STA 449 F1 /F3 Jupiter® / TG 209 F1 Libra® alone. This makes the coupled system ideally suited for labs in which space is scarce.
![](https://analyzing-testing.netzsch.com/_Resources/Persistent/a/b/f/4/abf4d9e97bd2057a76b5831cc48b15a862f3a49b/massimiliano-morosinotto-3i5PHVp1Fkw-unsplash-4000x2251-1650x929.webp)
Product Information
Datos Técnicos
Heating of transfer tube
Heating of gas cell
software-controlled
Detector
Gas cell length/volume:
70 mm / 5.8 ml
(no mirror inside, beam conforming design)
Spectral range of FT-IR data:
6000 cm-1 to 500 cm-1
Gas cell:
Window ZnSe, sealing Viton©
