09.02.2023 by Dr. Natalie Rudolph

Failure Analysis of Automotive Thermoplastic Parts by Means of DMA

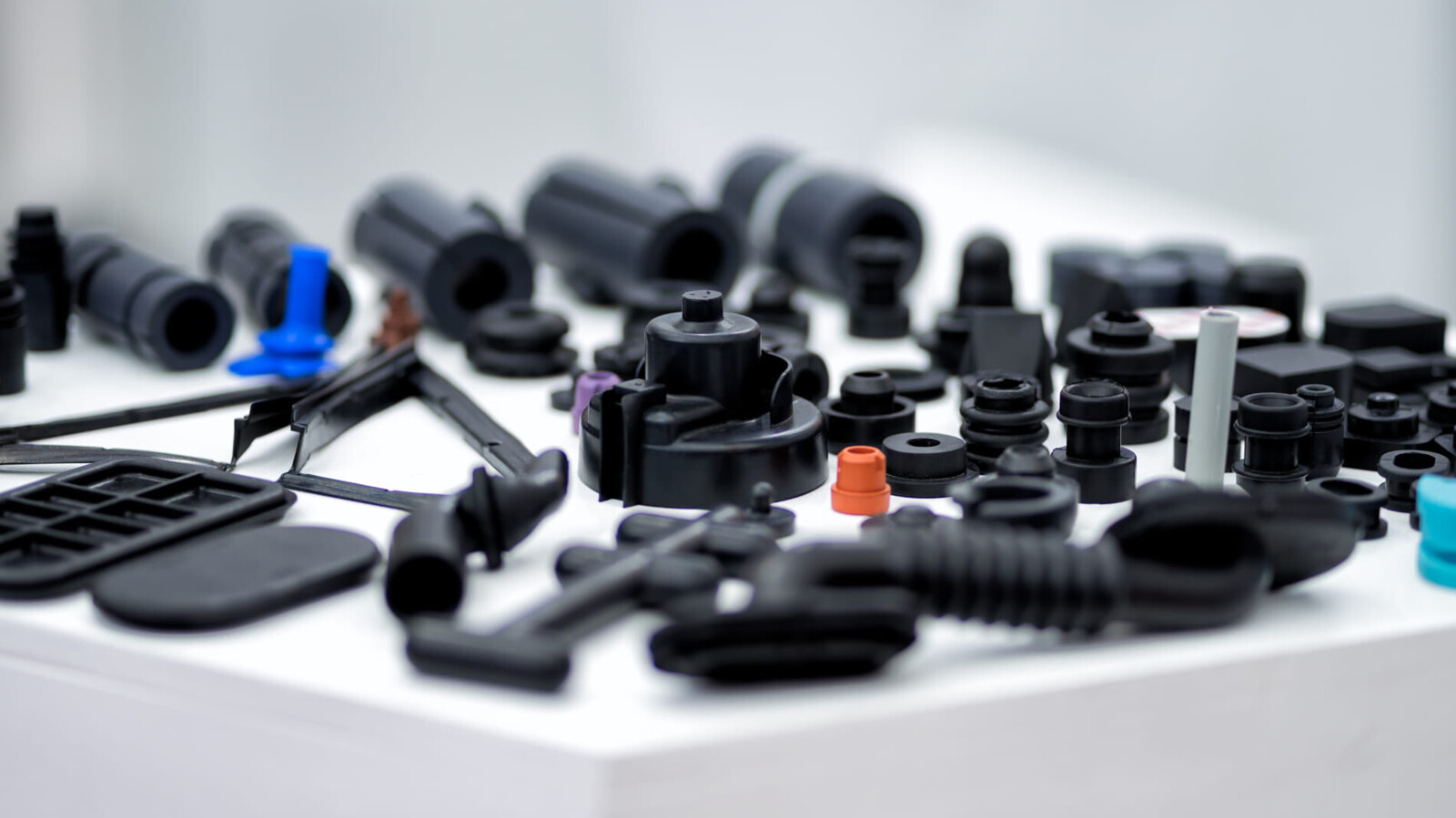

Thermoplastic parts can fail. However, when they do, the first priority is to identify the root cause of the failure and to eliminate it.

Failure analysis of injection molding thermoplastic parts requires a high level of expertise in material science, production methods and analytical instrumentation. There is a wide range of failure scenarios. These range from misuse and inadvertent service conditions to design faults, molding problems, StressStress is defined as a level of force applied on a sample with a well-defined cross section. (Stress = force/area). Samples having a circular or rectangular cross section can be compressed or stretched. Elastic materials like rubber can be stretched up to 5 to 10 times their original length.stress, overload and degradation during use.

NETZSCH Thermal analysis instruments are powerful tools for failure analysis

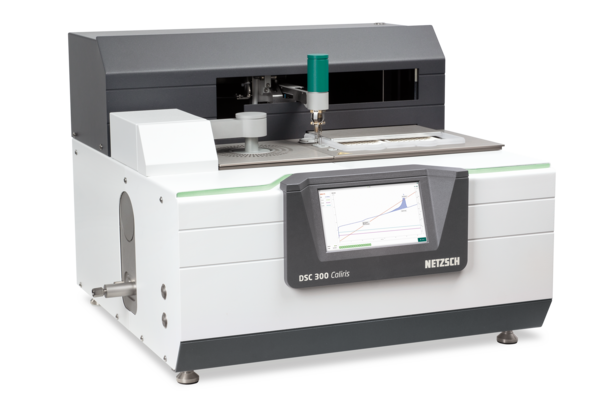

Differential Scanning Calorimetry (DSC) can answer questions like

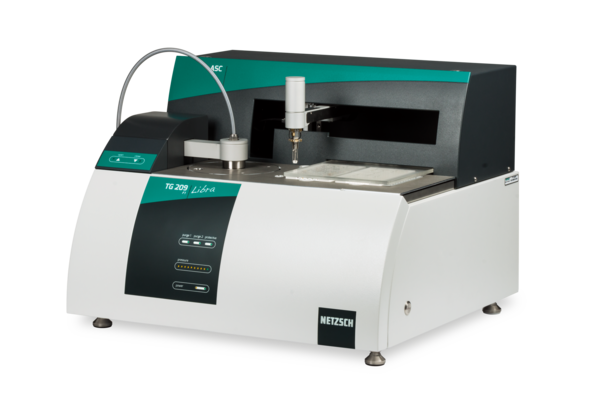

Thermogravimetric Analysis (TGA) helps to find answers for

  • Is the material filled with the right amount of fillers, plasticizer and modifiers?
  • Is the material thermally stable to withstand service temperatures?
  • Did the material absorb water?

Dynamic-Mechanical Analysis (DMA) also plays an important role in finding the reason for the failure of a part. Using DMA gives answers to questions such as

  • Does the material have the required mechanical properties at operating temperatures?
  • Is the material degrading faster than expected?
  • Does the material lose its mechanical properties due to the interaction with liquids?

In this article, we will provide deeper insights into the failure analysis of thermoplastic parts by means of DMA.

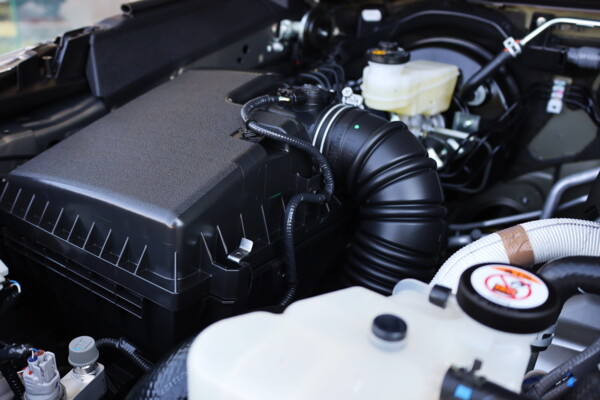

Common Causes of Failure of Automotive Thermoplastic Parts

Failure of injection molded thermoplastic parts comes in many forms. Often, the material selected or the process used to manufacture parts and components is the cause of the problem. Whenever faulty parts occur, it is important to find the cause of the failure so that the production process, material or design can be readjusted to avoid long-term costs.

We investigated one common failure of thermoplastics and show, how Dynamic-Mechanical Analysis can help determine the cause of failure:

Breakage of a Thermoplastic Part Under Stress

In polymers, gases, organic solvents, colorings and also moisture can diffuse into or through the material. However, absorbed moisture changes the properties of polymers. This also includes the mechanical properties of a polymer, e.g., the modulus, which is a measure of the resistance to elastic deformation. The failure of a thermoplastic part under stress can also be related to the uptake of moisture into the material. A dynamic mechanical analyzer (DMA) equipped with a humidity generator can help determine the mechanical properties at different levels of humidity.

In figure 2, a polyamide 6 (PA) sample was measured at a frequency of 1 Hz and a temperature of 40°C in tension mode. The relative humidity was stepwise increased from 0% to 75% over time. The stiffness (described by the storage modulus E’) of the material was measured in these relative humidity steps. It is clearly visible that the stiffness of the material decreases with the increase in relative humidity. At relative humidity of 50%, the storage modulus decreased by approximately 74%.


Figure 1: DMA measurement of a PA 6 sample in tension mode

This example shows how important it is to know the mechanical properties of a polymer under the conditions of use in a car and in different climates. It is therefore essential to use thermoplastic materials in the design of automotive parts and components that perform sufficiently under these conditions. Moreover, this example of a common cause of failure of thermoplastic materials shows how Dynamic-mechanical analysis can help determine reasons of failure. Analyzing materials with a DMA 242 E Artemis provides insights into temperature-depended viscoelastic properties such as stiffness and damping behavior.
