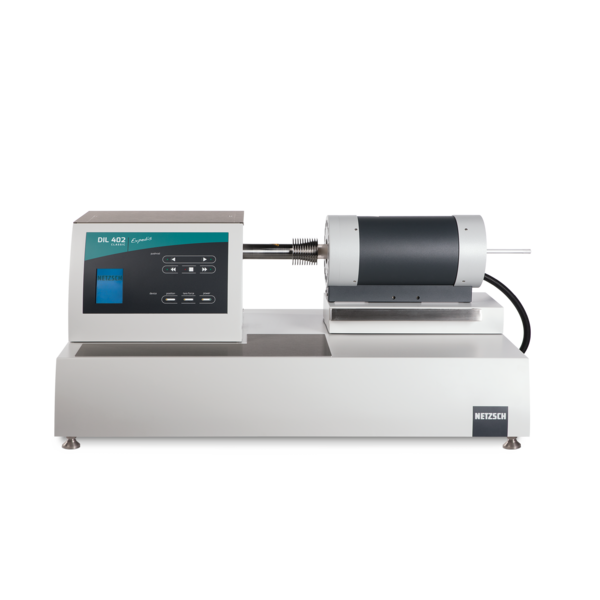

DIL 402 Expedis Classic

Dilatometry Redefined.

The dilatometer DIL 402 ExpedisClassic offers state-of-the-art dilatometer technology and is designed for sophisticated applications.

Like all instruments of the DIL Expedis series, the Classic version features the revolutionary NanoEye measuring cell; a new dimension in measuring range and accuracy.

NanoEyeEvery Nanometer Counts.

A New Dimension in Measuring Range and Accuracy

In classical dilatometry, the two parameters measurement range and resolutionmostly seem diametrically opposed. If the resolution goes up, the measuring range usually goes down and vice versa. NanoEye, the novel opto-electrical displacement system,  features perfect linearity and maximum resolution over a measuring range which was impossible to realize until now.

Functional Principle

During a test run, if the sample expands, all green components in the graphics move backwards with the help of a linear guide (marked in blue). The optical encoder determines the corresponding length change directly on the appropriate scale.

Key Feature

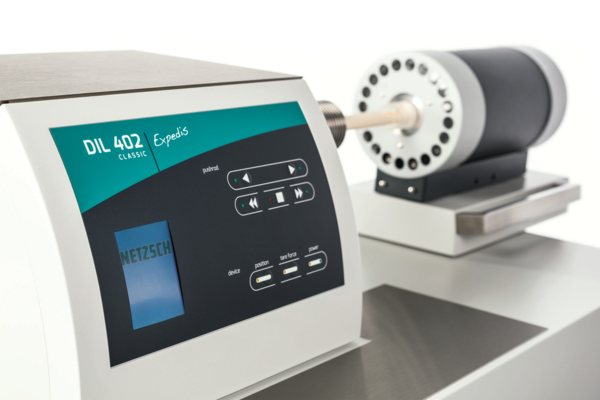

All-In-One Design & Long Life Cycle

The DIL ExpedisClassic is available as a single or dual/differential system. In both versions, the all-in-one design incorporates all hardware components which are usually necessary for precise dilatometer measurements. There is no inconvenient cable tangle nor is an external chiller required.

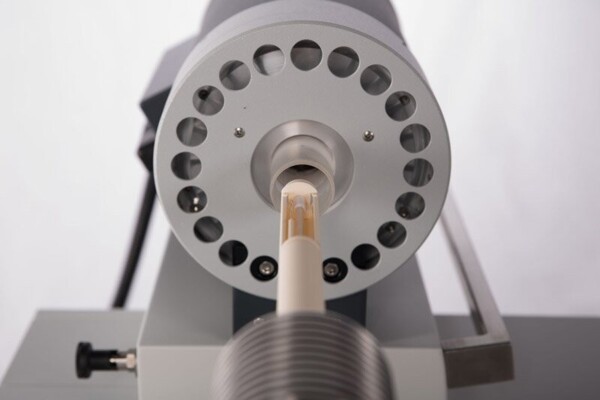

ExpedisClassic supports your smooth production flow by maintenance-free operation, low work load, long life cycle, simplified and safe operation. The system’s sophisticated design also includes effortless exchanging of the sample holder system with no risk of distortion.

Key Feature

Ease of Use

Major simplification begins with preparation of the measurement by using method-based test routines predefined by the operator.

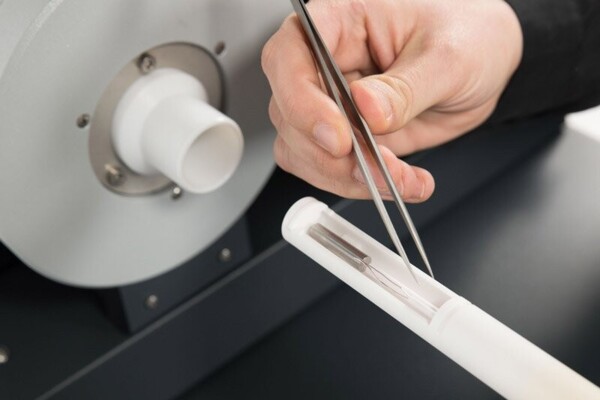

The MultiTouch feature places the sample into the optimum position using a unique, tail-like motion. The initial sample length is then automatically determined at a predefined contact force. The furnace closing is made smooth by cushioning which guarantees stable sample positioning.

Exchanging the furnace is simple and requires no detailed experience. Only a few clicks are needed to start the measurement

Key Feature

Controlled Contact Force

The controlled contact force allows the operator to measure small, delicate, fragile or foamed samples without risk of breakage and any non-reproducible deformation and to keep the contact pressure over the entire measurement time constant.

Also, this feature allows a highly reproducible sample length measurement independent of the respective operator. Sliding and rolling friction, stick-slip effects, etc. in the measurement system will now also be avoided.

Request a Quote

Get a personalized offer now.

Request a Quote

Technical Data

Heating Rates
0.001 ... 50 K/min
Sample Holder System
Single and dual/differential system
Displacement system

Temperature accuracy
1 K

Temperature precision
0.1 K

Repeatability of m. Coefficient of Linear Thermal Expansion (CLTE/CTE)The coefficient of linear thermal expansion (CLTE) describes the length change of a material as a function of the temperature.CTE
10-8 1/K

Measuring range
± 5000 μm

2 nm (over the entire measuring range)

Gas control
1-way, optional 3-way switch
