dynamic mechanical analysis

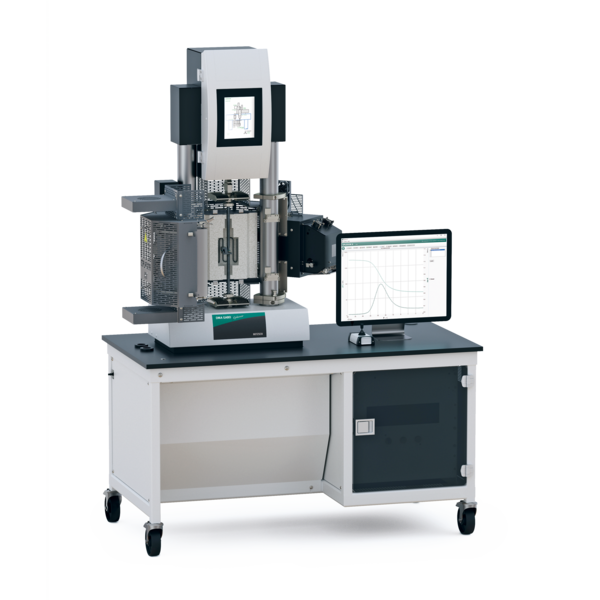

DMA Eplexor® HT Series up to 500 N

For ceramics, metals, alloys, glasses, composites and more

The DMA GABO Eplexor® HT line is the only instrument series on the market which is able to carry out DMA measurements with a maximum dynamic force of 500 N to 1500°C.

Two high-temperature furnaces are available: RT to 1000°C and RT to 1500°C. With a standard furnace (-160°C to 500°C) simultaneously mounted, it is possible to perform consecutive test runs in both the low- and high-temperature range. Eplexor® HT instruments can thus cover the entire temperature span from -160°C to 1500°C.

The electronics within the system automatically identify which furnace is currently in use.

The following DMA GABO Eplexor® HT are available:

Instrument TypeMax. Static ForceMax. Dynamic Force *)
DMA GABO Eplexor® 25N HT1500 N± 25 N
DMA GABO Eplexor® 100N HT1500 N± 100 N
DMA GABO Eplexor® 150N HT1500 N± 150 N
DMA GABO Eplexor® 500N HT1500 N± 500 N

Request a Quote

Get a personalized offer now.

Request a Quote

Technical Data

Temperature range
-160°C to 1500°C; the full temperature range can be covered if the instrument is equipped with the low-temperature and one high-temperature furnace
Static force range
max. 1500 N
Frequency range
0.01 to 100 Hz; optional: 0.0001 Hz;
200 Hz
  • Dynamic force range:
    from ± 25 N up to ± 500 N (depending on instrument type, see table)
  • Force sensor:
    interchangeable; nominal forces available from 10 N to 500 N (depending on the instrument type and configuration)
  • Static displacement:
    max. 60 mm
  • Dynamic amplitude:
    from ± 1.5 mm up to ± 6 mm (depending on the instrument type and system configuration)
  • Measurement modes for applications above 500°C:
    asymmetric and 3/4-point bending, compression
  • Work space of the high-temperature furnaces:
    cylindrical chamber, diameter: 70 mm, height: 120 mm
