Hyphenated Techniques

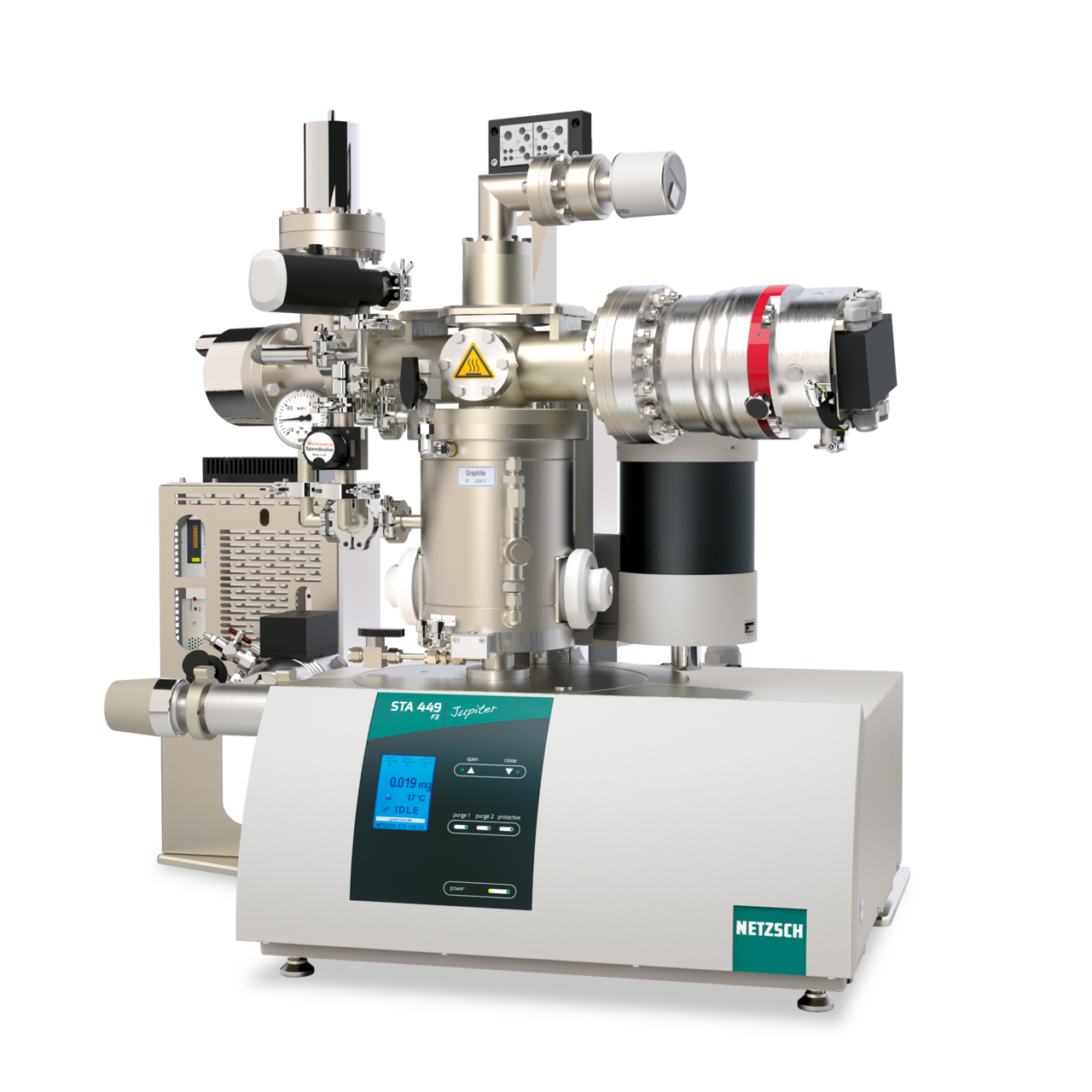

STA F3 Jupiter® with SKIMMER Furnace

Special, integrated coupling system for high performance gas analysis

The SKIMMER furnace enables a direct coupling with a quadrupole mass spectrometer (QMS), one of the most sensitive system for evolved gas analysis.

The coupling takes place directly in the furnace of the STA 449 F3 Jupiter®, which is especially developed for the usage with the SKIMMER coupling. The first pressure reduction stage is arranged directly above the sample container. The orifice is so designed that it works as divergent nozzle. The SKIMMER is the second pressure reduction stage and arranged in the range of the forming compression area behind the nozzle.

The distance between the sample and the high-vacuum component is only ca. 12 mm. The system design allows the gas transfer to occur at nearly the same temperature as the sample, therefore circumventing any condensation issues. The vertical gas flow in the sample chamber and the minimal distance between the sample and SKIMMER orifice ensures a reliable transfer of the evolving gases. This results in short retention times and a high sensitivity.

The STA 449 Jupiter® series is the ultimate system for versatility carrying out TGA, simultaneous TGA-DSC or simultaneous TGA-DTA measurements. The easily user-exchangeable sample carriers result in a very powerful and versatile STA system flexible enough to handle the broadest application range.

Susann Scharsach and Dr. Marcus Schmidt

„NETZSCH thermal analysis instruments support the synthesis and crystal growing at the institute. In particular, the Skimmer coupling makes it possible to identify easily condensable gases such as arsenic, tellurium or various metal vapors, even at high temperatures.“

Susann Scharsach and Dr. Marcus Schmidt
Staff members at the Max-Planck Institute for Chemical Physics of Solids in Dresden, Germany

The future is now!

Bring our devices into your laboratory with the click of a button.

Simply scan the QR code and get a 3D model of the instrument directly on your mobile phone or tablet. With the help of the latest AR Technology (Artificial Reality), the 3D model can easily be placed in your laboratory in its original life size. This function is browser-based and requires no app.

Find out and be amazed!

Request a Quote

Get a personalized offer now.

Request a Quote

Technical Data

Heating rate
Standard furnaces: 0.001 to approximately 100 K/min
Weighing range of balance system
Faraday, SEM (Channeltron), detection limit

Temperature range:
SiC furnace: RT to 1450°C with SKIMMER orifice from alumina
Graphite furnace: RT to 1950°C with SKIMMER orifice from glassy carbon

Sensor types:
DSC, DTA, TG, DSC-cp, quickly interchangeable

Extension with glove box
available (option)

Corrosion resistant version
available (option)

Crucibles of various types
and in in different dimensions

Mass range available with QMS:

1 to 512 u (*)

0.5 u (*)

Measuring modes / scan rates:
Analog scan
Scan Bargraph
Multi Ion Detection (MID)

SKIMMER temperature:
sample temperature

SKIMMER material:
Alumina (1450°C)
Glassy carbon (1950°C)

electron impact

u* = unified mass unit
