Fire Testing System for measuring the heat release and smoke production during flame spread tests on vertically mounted bunched cables and insulated wires, in accordance with EN 50399 and IEC 60332-3-10 (testing device)
The KBT 916 from NETZSCH TAURUS Instruments GmbH is easy to operate, offering innovative control and data acquisition options in an intuitive format with ample user guidance.
The high-resolution color touch display on the “KBT Control” cabinet allows for measuring and control with the integrated Single Board Computer, Windows operating system and KBT software. There is thus no longer any need for manual controls such as switches, controllers or buttons; the status of the testing system is clearly displayed and the system prevents any critical operating errors. The storage, analysis and recording of all test data is handled entirely via the control unit. Well thought-out details along with the use of high-quality materials guarantee the KBT 916 test system a long product life and a low degree of wear and tear.

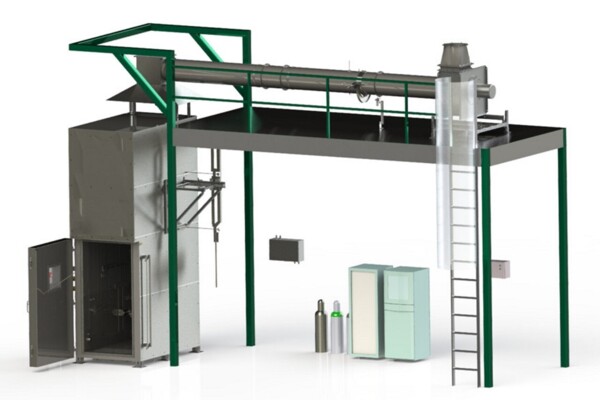

- KBT test chamber with sample holder, hood, collector, measuring tube, gas installation, burner, air supply and sensors
- Double-walled test chamber, stainless steel with mineral wool insulation, opening for air supply at the bottom, opening for smoke extraction, rail guides on the back wall for easy mounting of sample holders, electric winch assembly, stainless steel door with fire-resistant glazing
- Cable winch with electric drive, ramp and option for easier transport of the sample holder
- Exhaust gas fan with flow control for constant exhaust gas flow
- Modules for data acquisition and control of all processes
- Extensive options and accessories for enhancing the exhaust system and for calibrating the KBT test unit
- Stainless steel extraction hood and collector for protection against aggressive gases
- Measuring duct section with bidirectional probe, NiCrNi thermocouples, light measurement system and gas sampling probe
- Ribbon propane burner with venturi mixer, piezoelectric igniter, flame detector, folding mechanism and stainless steel protective cover
- Gas installation with digital gas flow controller, pressure controller and magnet valves
- Supply air process fan with frequency converter and digital control module
- Exhaust air process fan with frequency converter and digital control module
- "KBT Control" measuring and control unit with SBC, 32-GB SSD, Windows 10, 10.1“ color touch screen, SIEMENS gas analyzer, measuring gas processing, measuring and control modules and RS232/USB interfaces
- 19“ PC rack, monitor, printer, PC (option)
- Single license for the KBT software
Method
Test Method
The cable is exposed to the flames in a closed chamber for 20 minutes. The cables are mounted in a vertical tube furnace on a ladder and the flame is ignited with a propane gas ribbon burner. The time of ignition provides information for evaluating the combustion behaviour.
Test Setup
The cables to be tested are evenly distributed on the conductor. During the fire test, the conductor with the cable samples facing inwards is placed vertically against a wall in a combustion chamber. The burner is placed in front of the conductor at a distance of 7.5 cm from the samples.
Measurement
The spread of the flame and the burning droplets/particles are observed and the length of the fire damage is measured at the end of the test. The flue gases produced during combustion are discharged via an exhaust air duct, where the speed of the air flow, theO2 andCO2 content as well as the light absorption and temperature are measured.
Specifications
Measurement method
Burner
Protective cover, stainless steel
Sample holder
Proven Excellence in Service
At NETZSCH Analyzing & Testing, we offer a comprehensive range of services globally to ensure the optimal performance and longevity of your thermoanalytical equipment. With a track record of proven excellence, our services are designed to maximize the effectiveness of your devices, extend their lifespan, and minimize downtime.
Unlock the full potential of your equipment with our tailored solutions, backed by years of industry expertise and innovation.
Software
Graphical and numerical display of all test results
- Freely configurable display of results (chart, diagram, text); up to 16 configurable windows
User guidance for test procedure and dialog for automated adjustment of gas analysis
- Prior to test, 300-s recording of data
- Automatic activation of valves and burner
- Monitoring of HRR and excess temperature in the exhaust duct
- Online calculation: HRR, THR, SPR, TSP, FIGRA
- Calculation and display of the measurement results
Calibration of test device in accordance with the standard (stability, step calibration test, heptan calibration, light)
- Easy calibration
- Analysis in an Excel file
- Calibration certificates for the individual sensor
