発生ガス分析 (EGA)
発生ガスの検出と測定手法
約半世紀にわたるカップリング技術の開発経験

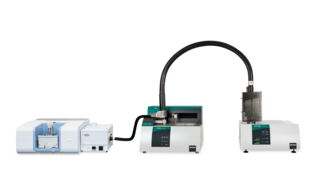

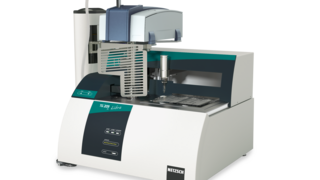

By coupling a Thermobalance (TG, TGA) or Simultaneous Thermal Analyzer (STA, TGA-DSC) with a Quadrupole Mass Spectrometer (QMS), it is possible to detect and identify evolved gases in exact time correlation with TGA or STA signals.

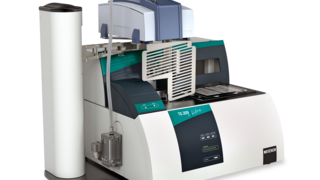

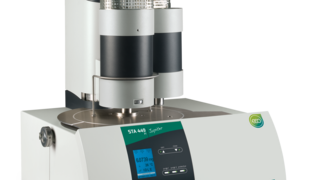

The Combination with an FT-IR (Fourier Transform Infrared Spectrometer) has become an absolute must, especially in the polymer-producing, chemical and pharmaceutical industries.
The GC (gas chromatograph) separates gas mixtures based on the differences in component distribution between a stationary phase (e.g., inner coating of a capillary) and a mobile phase (e.g., He). The purge gas rapidly carries away gas components with a low affinity for the stationary phase. Gases with a high affinity for the stationary phase will follow with a significant time delay (“retention time”).
Measurement Results by Coupling

質量分析装置とのカップリング

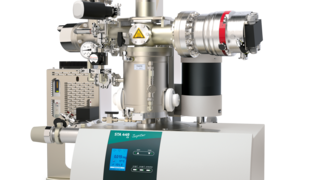

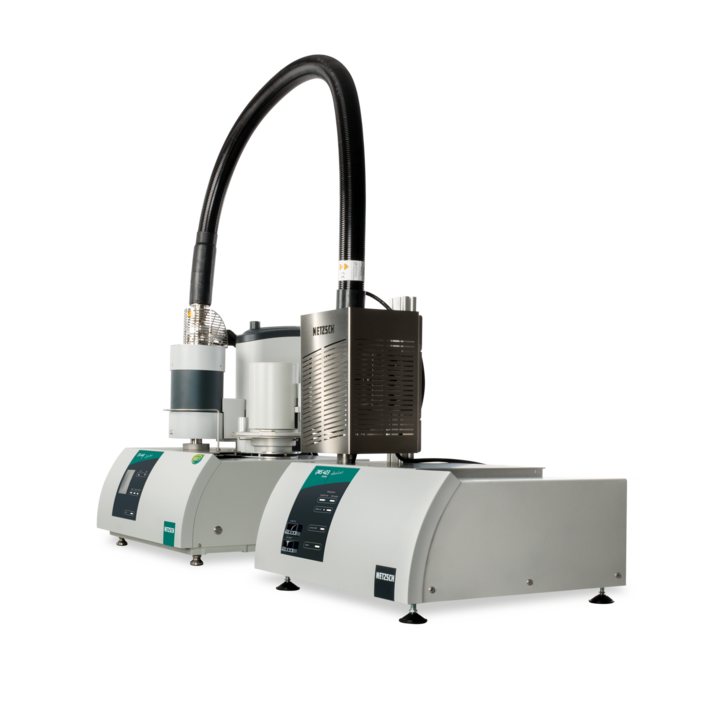

熱天秤 (TG, TGA) または同時熱分析装置 (STA, TGA-DSC) と四重極質量分析計 (QMS) をカップリングすることにより、TGA または STA 信号と正確な時間相関で発生ガスを検出・同定することが可能です。NETZSCHは40年以上の発生ガス分析の経験があり、ユニークなSKIMMERカップリング、QMS 403 Aëolos® Quadro用キャピラリーカップリング、GC-MSカップリングなど、実績のあるカップリングシステムを提供することが可能です。

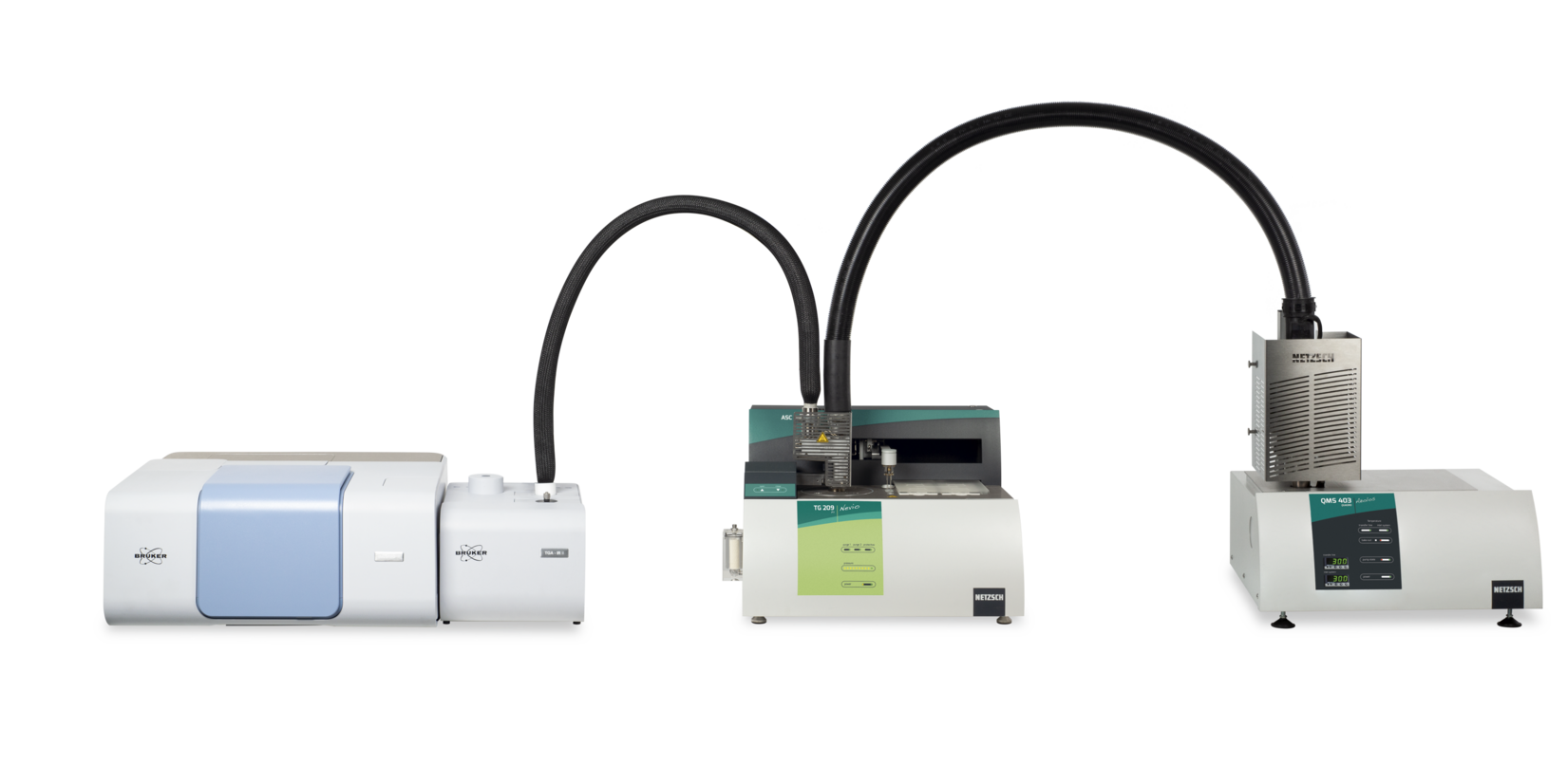

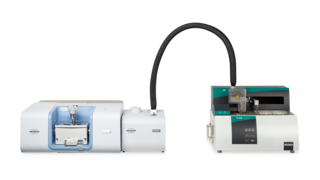

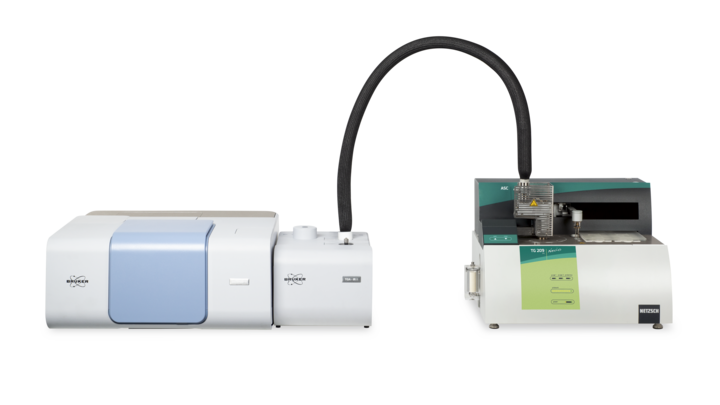

FT-IR システムとのカップリング
FT-IR (Fourier Transform Infrared Spectrometer) との組み合わせは、特にポリマー製造、化学、製薬業界では絶対必要なものとなってきています。NETZSCH Analyzing & Testing は、1993年以来、分光計のメーカーとして知られる Bruker Optics GmbH と提携しています。FT-IR カップリングは、 単なる部品の寄せ集めではなく、全体で大きな役割を果たすシステムです。私たちのインテリジェントなハードウェアとソフトウェアの設計にお任せください。

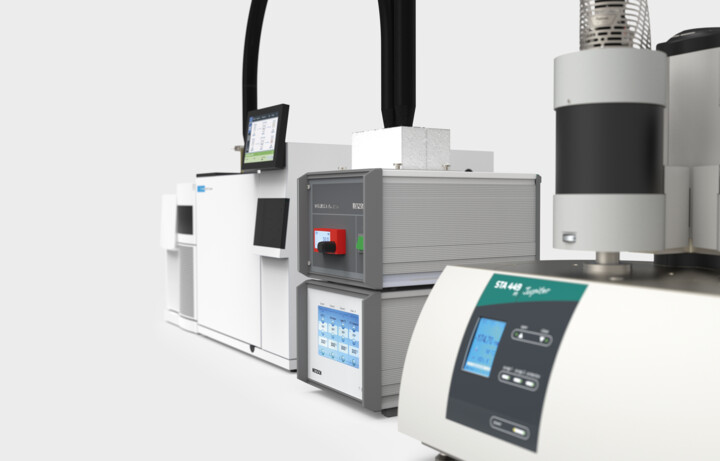

GC-MSとのカップリングにより、発生ガス分析を強化
GC(ガスクロマトグラフ)は、固定相(キャピラリの内膜など)と移動相(Heなど)の成分分布の違いを利用して混合ガスを分離する。パージガスは、固定相との親和性が低いガス成分を速やかに運び去ります。固定相との親和性が高いガスは、かなりの時間遅れ(「保持時間」)で追いかけてきます。GCカラムの出口には、MSが接続されています。GCによるガスの前分離を基礎として、MSは放出された化合物の詳細な構造情報を提供します。
発生ガスの定量と供給ガスとの反応挙動

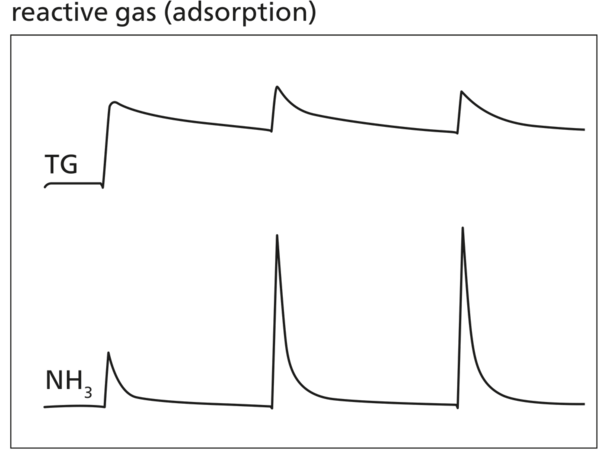

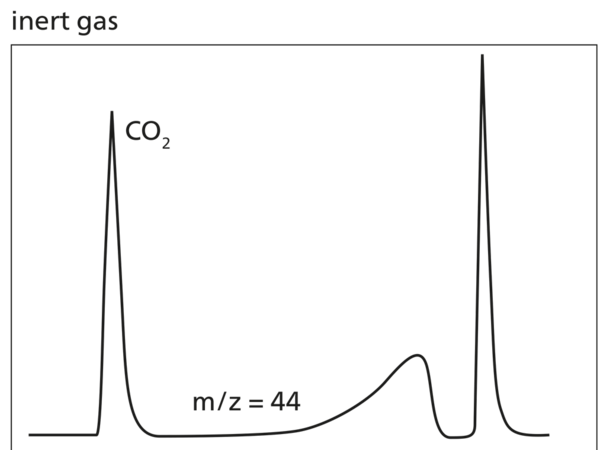

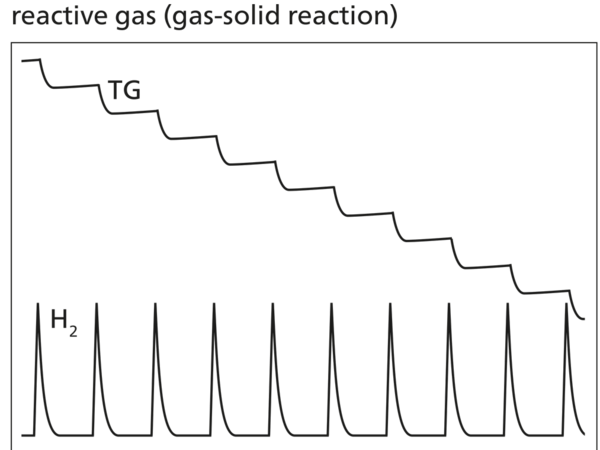

PulseTA® は、個別の校正測定や、サンプル測定中のオンライン状態でも、定量的なガス検出を実現するための最適なツールです。さらに、PulseTA® は、反応性ガスの注入によるプロセスの段階的制御で気体/固体反応の研究を可能にし、吸着/脱着実験や触媒反応の研究を簡素化します。
