Crystallization Kinetics of Polyamide 12 for Additive Manufacturing Processing

Introduction

Powder Bed Fusion (PBF), often called Selective Laser Sintering (SLS), is one of the most frequently used Additive Manufacturing technologies for producing structural plastic parts. It does not require molds or support structures. Furthermore, it is capable of producing complex geometries, internal structures and thin walls with mechanical properties comparable to injection-molded parts. This shortens the development cycle and makes it an alternative for many work pieces and even whole assemblies [1].

In the PBF process, a thin layer of powder is applied on the build platform and heated to just below the melting temperature of the material. Next, a laser traces the cross-section of the part geometry of the first layer, providing enough energy to locally melt the material. The surrounding powder stays solid and keeps the shape of the molten geometry. Now, the build platform is lowered by one layer height making room for the next layer. A sweeper moves across the surface and deposits new and colder powder on top of the build platform to create the next layer. These process steps of powder coating and laser melting are repeated over and over until the whole part is built. Only then is the build envelope cooled down, which initiates crystallization and thus solidification process of the part. After the part is cooled completely, it is unpacked. The entire process can be up to 12 hours without subsequent cooling; isothermal crystallization can occur after some time. Therefore, isothermal crystallization studies are needed to evaluate this behavior for the selected polymer powders and thus qualify them for PBF [2].

Material

The first material used in this process was Polyamide 12 (PA12) due to its good mechanical performance and the capability of generating powders by precipitation. This yields a powder with close to perfect spherical shape, which is necessary to create a uniform layer during coating.

Experimental

A typical protocol for the isothermal crystallization of PA12 measurements is given here:

Step 1: The sample was heated from room temperature to above melting at 200°C at 20 K/min. It was kept there for one minute to erase the sample history.
Step 2: It was then rapidly cooled to the isothermal temperature step (168°C, 167°C, 166°C, 165°C, 164°C, 163°C, 162°C) using a high cooling rate of 125 K/min to prevent reorganization processes that occur with PA12 at slow cooling rates. Both the capability of achieving a fast cooling rate with regular sample sizes and the capability of precisely controlling the temperature are features of the NETZSCH DSC 300 Caliris^® with P-Module that are extremely valuable for this analysis.
Step 3: Next, the sample was kept at the isothermal temperature for 30 minutes to study the crystallization process.
Step 4: The sample can then be cooled down or the sample can be heated back up to 200°C at 10 K/min (as was done here) to get the full picture and observe the melting behavior after the isothermal crystallization step.

All other measurement conditions are summarized in Table 1.

Table 1: Measurement conditions

Pan	`Concavus^®` Al, unpierced
Sample weight	5 mg
Atmosphere	N₂
Gas flow rate	250 ml/min
Temperature steps	25°C →200°C (20 K/min), constant for 1 min, 200°C → 165°C (125 K/min), constant for 30 min, 165°C → 200°C (10 K/min), cool down

Figure 1 shows the isothermal crystallization behavior at different temperatures from 162°C to 168°C right below the build envelope temperature. The crystallization peak temperature, t_max, is analyzed in the Proteus^® software as the peak of the curve from the start of the isothermal step.

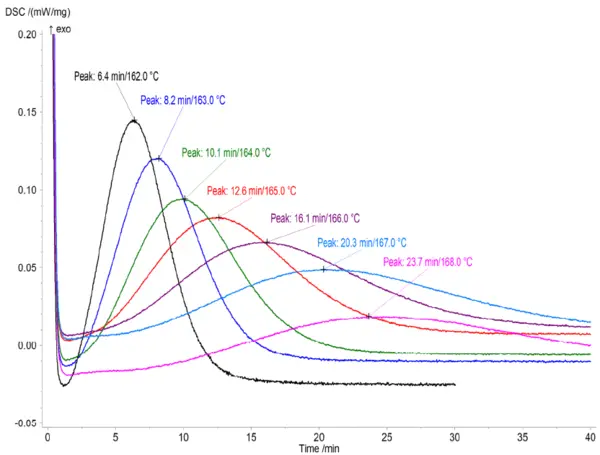

1) Isothermal crystallization behavior of PA12 powder at 162, 163, 164, 165, 166, 167 and 168°C.

Figure 2 shows the corresponding normalized temperature profile of the isothermal segment. The isothermal temperatures were reached about 0.2 minutes after the segment start. Even at these high cooling rates of 125 K/min, the temperature only overshoots by ± 0.1 K in less than 30 s.

These results highlight that even at the typical build envelope temperature of 168°C for PA12, crystallization starts after about 1 minute from the beginning of the isothermal segment (Figure 1) and reaches its peak after 23.7 minutes. While the top layers will be reheated closer to the melting temperature with each additional layer, it becomes obvious that lower layers will eventually stay at 168°C or could even cool further. Thus, given the long build durations of typically several hours, crystallization will occur and has to be taken into account.

To further understand the crystallization rate as a function of time and temperature as well as to model the process – for example, to determine warpage or residual stress build-up – the crystallization kinetics can be studied. The kinetic modelling of the crystallization rate is based on these isothermal DSC data.

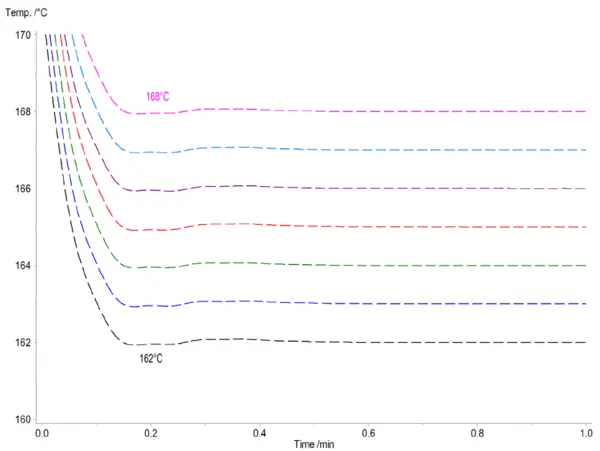

2) Normalized temperature curves for the transition to the isothermal step at temperatures from 168 to 162°C.

Kinetic Analysis

The kinetic analysis was performed using the NETZSCH Kinetics Neo software [5]. It provided one kinetic model depending on time and temperature, which can describe all experimental curves at different temperatures. This model calculates the crystallization rate by the kinetic equation:

\frac{d α}{d t} = f (α) \cdot K (T) (1)

Where

f(α) is the dependence of the crystallization rate on the current crystallization degree, α
K(T) is the dependence of the crystallization rate on temperature.

In isothermal analysis of crystallization, the first dependence is typically represented by the Avrami equation, which represents the crystallization nucleation rate.

f (α) = n \cdot (1 - α) \cdot {[- \ln (1 - α)]}^{\frac{n - 1}{n}} (2)

The extended version of the Avrami equation is the Sestak-Berggren equation. This extended equation is used in the current analysis because it provides a better fit for the experimental data:

f (α) = {(1 - α)}^{n} \cdot α^{m} \cdot {[- \ln (1 - α)]}^{q} (3)

The expression K(T) in Eq. 1 is a formal Arrhenius dependence as the function of temperature with pre-exponent, A, and apparent activation energy, E:

K (T) = A \cdot \exp (\frac{- E}{R T}) (4)

This kinetic model (Eqs. 1, 3, 4) presents the dependence of the current crystallization rate on the temperature and current Kristallinität / KristallinitätsgradDie Kristallinität bezieht sich auf den Grad der strukturellen Ordnung in einem Festkörper. In einem Kristall sind die Atome oder Moleküle regelmäßig und periodisch angeordnet. Viele Materialien, wie Glaskeramik und einige Polymere, können so aufbereitet werden, dass eine Mischung aus kristallinen und amorphen Bereichen entsteht.degree of crystallization. The equations contain unknown kinetic parameters, which are found by the software in order to determine the best fit for the experimental curves.

When this kinetic analysis is performed simultaneously under different temperature conditions of all isothermal experiments with optimal parameters, then there will be very good agreement between the experiment and simulation with R² = 0.998. In Figure 3, the points represent the experimental data and the solid lines show the simulation according to Eqs. 1,3,4.

The rate of crystallization differs from chemical reactions by its temperature dependence. Chemical reactions will be faster at higher temperatures. However, increasing the temperature for crystallization results in lower supercooling and therefore a slower crystallization rate. Figure 3 presents the slowest crystallization at the highest temperature of 168°C and fastest crystallization at the lowest temperature of 162°C.

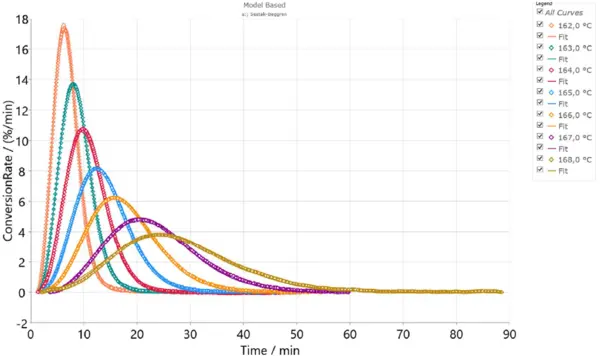

3) Conversion rate: Experimental data and simulation according to the kinetic model for isothermal crystallization of PA12. The dotted lines represent the experimental data and the solid lines the simulation according to Eqs. 1,3,4.

This inverse temperature direction for crystallization provides negatives apparent activation energy in the kinetic models for isothermal crystallization, which is published in literature and also in ASTM standards [4]. The kinetic parameters for the Sestak-Berggren model with negative apparent activation energy are presented in Table 2.

Table 2: Kinetic parameters of crystallilzation of PA 12 for the Sestak-Berggren model conditions

Activation Energy	-406.549 kJ/mol
Log (PreExp)	-50.900 Log (1/s)
ReactOrder n	0.942
AutocatOrder	0.528
LogOrder q	0.133

Simulations of PA12 Crystallization in PBF Processes

This single model now works for different temperatures between 162 and 168°C. Therefore, it can be used for simulation of crystallization in the PBF process in the process window of temperatures. The temperature profile of the powder surface was measured over the duration of the cycle. We can then run a simulation of the crystallization process for this powder layer. It can be assumed that each lower layer has a similar temperature profile, but with slightly reduced temperatures due to the powder application for each layer. Thus, the crystallization process of a single layer during several laser cycles can be simulated. Figure 4 presents the simulation of the crystallization degree over 5 cycles where for each new cycle, the temperature of the current layer was reduced by 2 K because its position shifts towards a lower level.

We see that one layer cannot completely crystallize during the time constraints of one cycle, when this layer is on top of the powder bed. However, crystallization continues throughout the PBF process, as each cycle produces further layers. Crystallization during several cycles is one of the advantages of PBF, when the resulting 3D object has very strong layer adhesion and isotropic mechanical properties in all directions like hardness, tensile strength and elongation [3].

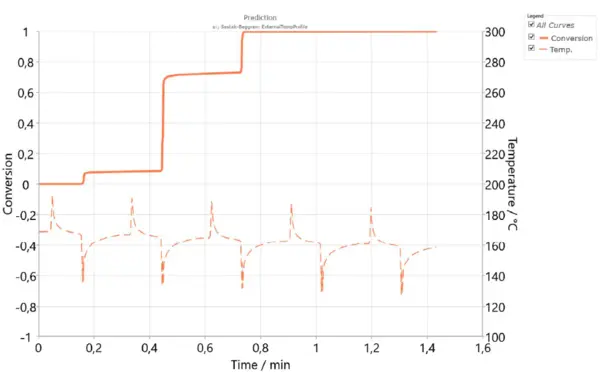

4) Simulation of the crystallization degree over 5 laser cycles for standard 3D-printing where each new cycle has a temperature 2 K below the previous cycle.

However, if the thickness of the powder layer is increased, then the temperature difference between layers will be higher. This can happen during high-speed sintering. The simulation over 5 cycles with a temperature difference of 5 K (Figure 5) shows that the main crystallization is already finished during the second cycle, while the third layer is already solid. This asynchronous crystallization could be the reason for the mechanical stresses, warpage or curling in the sample because of its shrinkage during the PBF process. Additionally, using thick powder layers could decrease the isotropy of the final material.

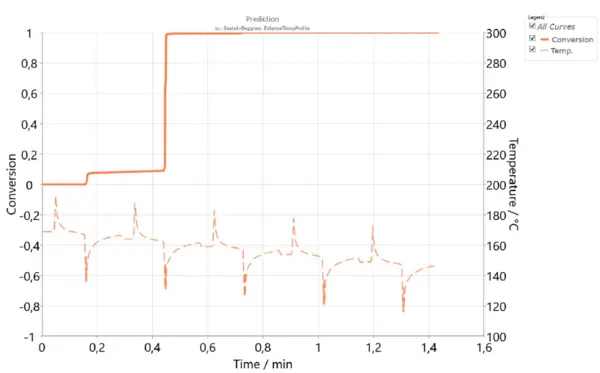

Simulation of the crystallization degree over 5 laser cycles for high-speed sintering where each new cycle has the temperature 5 K below the previous cycle. — 5) Simulation of the crystallization degree over 5 laser cycles for high-speed sintering (HSS) where each new cycle has the temperature 5 K below the previous cycle.

Conclusion

The combination of NETZSCH Kinetics Neo and a NETZSCH DSC instrument is an effective method for studying the crystallization rate of polymers and simulates their behavior for such complex industrial processes such as 3D-printing by PBF technology. This is extremely valuable in searching optimal temperature conditions for the new materials which will be used in Additive Manufacturing processes by Powder Bed Fusion.
